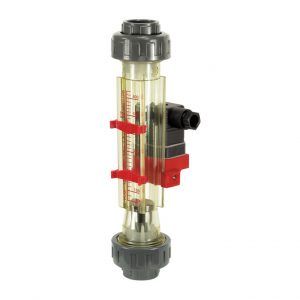

Industrial process control in water treatment, osmosis, cooling and heating circuits, gases control. Available also for chemical, petrochemical, paper, pharmaceutical industry due to their high chemical resistance.
Technical specifications
Measuring range
- 4 l/h … 50 m3/h H2O a 20ºC
- 120 Nl/h … 1500 Nm3/h air at 1 bar abs and 20ºC
- Other scales on request
Accuracy
- PT/PS models +-4% f.s.
- PTM/PSM models +-6% f.s.
Connections
- DIN DN15 … DN80 flanges
- Threaded fittings from ½” to 3” BSP
- PVC solvent weld socket fittings
- SS fittings for welding
Materials
- Flow tube: Trogamid T, Polysulfone and NAS
- Wetted parts/fittings: PVC, EN 1.4404 (SS 316L), Steel, PP
- Other on request.
Options
- 11 or 2 adjustable reed switches
- 4-20 mA transmitter (max. resolution 18 points)
- HART ™ protocol, Profibus, Fieldbus on request
