Đồng hồ đo lưu lượng dầu xăng dầu
STE High flow 200·300·500 or 1,000 l/min Electronic · ±0.5 %
Liquids: Diesel Petrol
USE
- Supply kit for the high flow fuel supply suitable for the diesel, petrol and kerosene installations
- Designed for a “heavy duty use”.
Composed of:
CHASSIS:
- Made of steel. Brilliant epoxid paint finish · Weatherproof
- It has built in an anchorage base.
PUMP:
- BDP · self-suction vane pumps of high flow, self-suction, positive displacement, constant flow, noiseless and heavy-duty
- Flow: 200 l/min (other available models up to 1,000 l/min)
- Certificate: ATEX EExd IIBT4
- Working pressure: 3 to 5 bar
- Motor: 2.2 kW 230/400 VAC · II2G EExd IIC T5 with ATEX certificate ATEX · triphase · F Class · 2,860 rpm · IP-55 protection
METER:
- Volumetric Aluminium meter with oval gears and degasifier in order to avoid the gas measuring
- Accuracy ±0.5 % (Ask for other models with high accuracy.)
- Manual reset
- DISPLAY: LCD that shows the partial or total of the supplied litres. Keypad that allows to preset the amount to be supplied.
*OPTIONAL: GK-7 · Own consumption controller with user/vehicle identification and PC or cloud communication
It is supplied with:
- 4 m delivery diesel hose of double layer with couplings in both ends
- PA-250 · Automatic nozzle

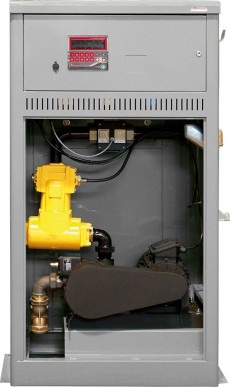

STE-200 · HIGH FLOW ELECTRONIC DISPENSER · 200 l/min
- Dim.: 800x540x1,500 mm (length x width x height)
