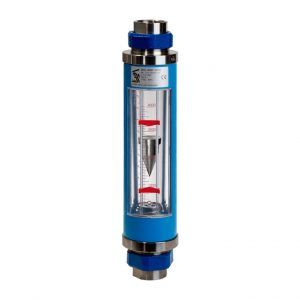

Variable area flowmeters with glass tube.
Easy installation without straight pipe run required and protected against accidental breakage.
Technical specifications
Measuring range
- 2,5 l/h … 40 m3/h H2O
- 40 Nl/h … 1200 Nm3/h air
Accuracy
- ±1,6% f.s.
Connections
- DIN DN15 … DN80 flanges
- Threaded fittings from ½” … 3” BSP
- PVC solvent weld socket fittings
- SS fittings for welding, others on request
Materials
- Flow tubes: borosilicate glass, length 300 mm
- Wetted parts: Coated steel, EN 1.4404 (SS316L), PVC, PP, PTFE
Options
- 1 or 2 adjustable switches (reed switch, micro-switch or inductive sensor)
- 4-20 mA transmitter (max. resolution 18 points)
- HART ™ protocol, Profibus, Fieldbus on request
