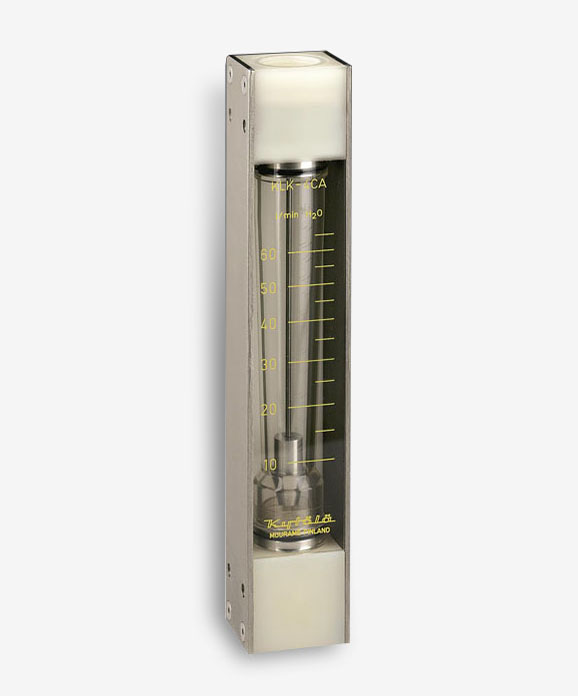

Lưu lượng kế dạng phao Model KL
Giá:
Liên hệ
Xuất xứ:
Finland
Lượt xem:
3554

Flow range (min./max.): Water: 7.5 / 120 L/min Air: 200 / 3000 NL/min at +20C / 101,3 kPa

Overview

Variable area flow meter Model KL is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It comes in a range of different options and offers a choice of end blocks - aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are water treatment, oil measurements, and sealing water measurements of vacuum pumps.

Technical Data
Model	KLA-	KLH-	KLK-
Weight	1.9 kg	3.1 kg	1.4 kg
End blocks	Aluminium	AISI 316	Nylon
Side plates	AISI 316	AISI 316	AISI 316
Max. pressure	30 bar	30 bar	20 bar
Max. temperature	80°C (* 120°C)	80°C (* 120°C)	80°C
Flowtube	Grilamid (PA-12) (* PES)	Grilamid (PA-12) (* PES)	Grilamid (PA-12) (* PES)
Connections	BSP 1" or NPT 1"	BSP 1" or NPT 1"	BSP 1" or NPT 1"
Float	AISI 329	AISI 329	AISI 329**
Seals	Nitrile (* Viton®, EPDM)	Nitrile (* Viton®, EPDM)	Nitrile (* Viton®, EPDM)
Accuracy	±5% F.S. (H2O, +20°C)	±5% F.S. (H2O, +20°C)	±5% F.S. (H2O, +20°C)
*Alarm sensor	ILK-M30-BB (20 - 250 VAC/DC, 2-wire, NC)  ILK-M30-FR (10 - 55 VDC, 2-wire, NO/NC)  ILK-M30-N (Namur, DIN 19234)
*) Special construction on request		**) Note! Other possible wetted metal parts: AISI 316
