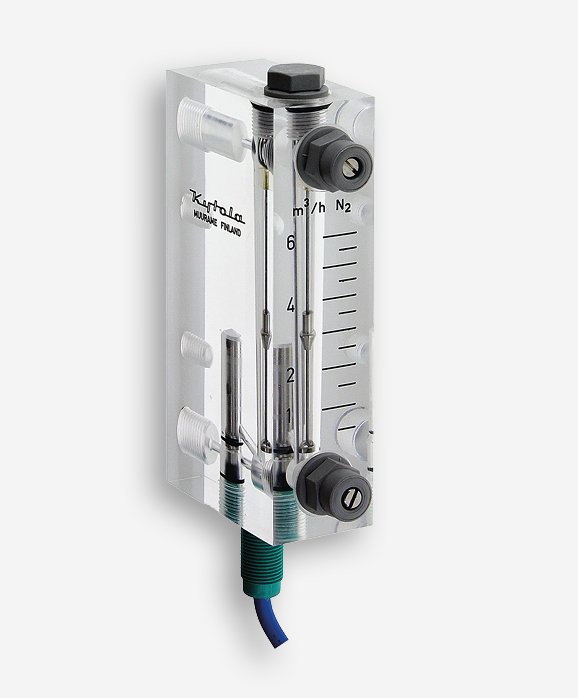

Lưu lượng kế dạng phao Model EA
Giá:
Liên hệ
Xuất xứ:
Finland
Lượt xem:
6915

Flow range (min./max.): Water: 0.002 / 2.5 L/min Air: 0.1 / 90 NL/min at +20°C / 1.013 bar (abs)

Overview

Variable area flow meter Model EA with adjustable flow alarm is designed for applications where continuous flow control is essential. The adjustable flow alarm and clear scale guarantees easy and reliable flow monitoring. Typical applications are heat treatment ovens and automatic welding lines.

Technical Data
Body	Acrylic (PMMA)
Valve housing/plugs	Nylon or AISI 316
Valve spindles	AISI 316
Alarm float	AISI 316
Seals	Nitrile (*Viton®, EPDM)
Max. pressure	10 bar
Max. temperature	75°C
Connections	BSP 1/4", thread adapters must be used for NPT connections
Accuracy	± 5% F.S. (H2O, +20°C)
Alarm sensor	NAMUR or PNP/NPN
Weight	360 g
*) Special construction on request
