Đồng hồ đo lưu lượng dầu TCS - USA

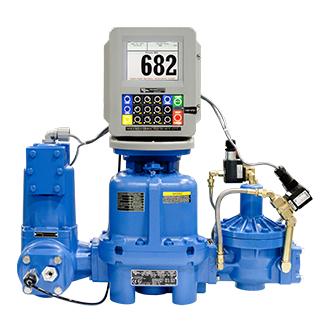

The TCS 682 reciprocating piston flow meter combines outstanding accuracy (0.1% of flow rate) with one of the widest turndown ratios in the industry (250:1). The TCS 682 reciprocating piston flow meter has a rugged industrial design that is tolerant to changing viscosities, temperatures and liquids with suspensions and solids.
This proven design has over 80 years of unmatched performance and continues to provide the very best in flow measurement, backed by our industry leading 10 year warranty (5 year warranty LPG)!
Flow Range: 0.2 to 50 GPM (0.76 to 190 LPM); 250:1 Turndown rato
Linear Accuracy: Capable of +/- 0.1% over flow range
Repeatability:Capable of 0.01%
Operating Pressure: 150 PSI (10.5 BAR)
Temperature Range: - 40 to 160°F (- 40 to 71°C)
Viscosity Range: Will accurately measure liquids up to 50,000 SSU (11,000 CPS)
Connections: 1-1/2" NPT Companion Flanges are standard, 1" & 2" NPT optional. BSPT, Slip Weld, and ANSI flanges are available upon request.
Types: SP, SPA, SPD, AF, SS, SSD, & LP
Material: Aluminum, Ductile Iron, or Stainless Steel
