Đo lưu lượng kênh hở:

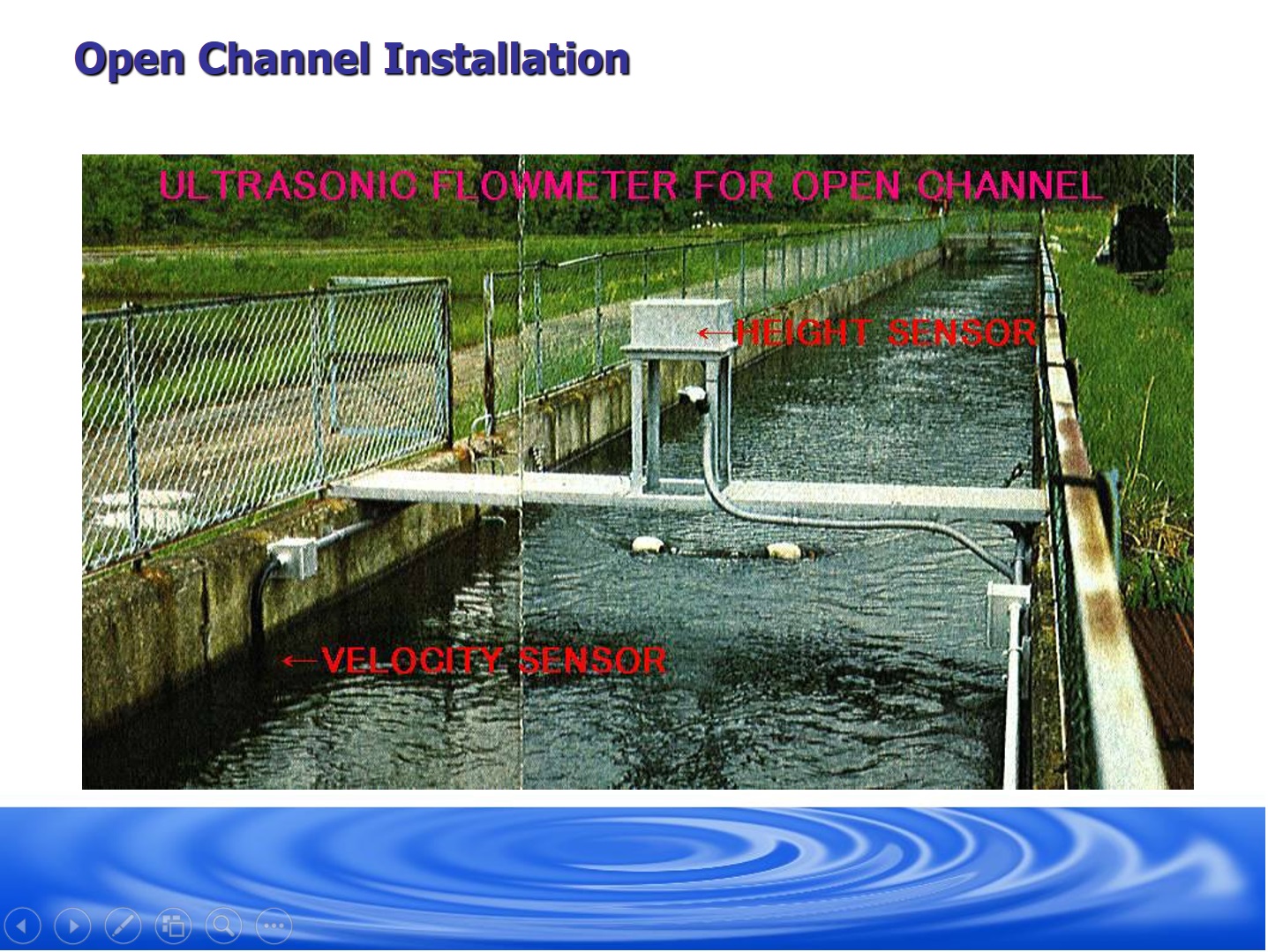

The UFH-100 ultrasonic flowmeter system for open channels
employs the latest in ultrasonic technology.
Utilizing our wealth of know-how and technical expertise, the
UFH-100 system combines an ultrasonic flow rate meter with a 2
wire level gauge to provide accurate and stable flow
measurements.
It is applicable for liquids with free surfaces such as agricultural
water, river water and industrial effluents.
Features - Đo lưu lượng kênh hở:
Flow is calculated based on flow velocity data and water level data which enable precise monitoring of changes in flow.
This non-intrusive system does not retain the water channel in any way so there is no head loss or build up of sediment
on components.
Flow measurements can be made from zero to full water levels.
Sensing components are easy to install.
Water channel modifications are not necessary in the case of existing as well as new facilities.
System is low-maintenance as there are no moving parts in the flow velocity and water level sensing
components.
Up to 4 flow velocity measurement paths are possible. As each measurement line is set independently,
effective multiple line measurement even including diverse water channel profiles such as rectangular,
inverted trapezoid, and horseshoe, is possible.
Water level measurement can be performed with any 2-wire level gauge.
Measurement Method
