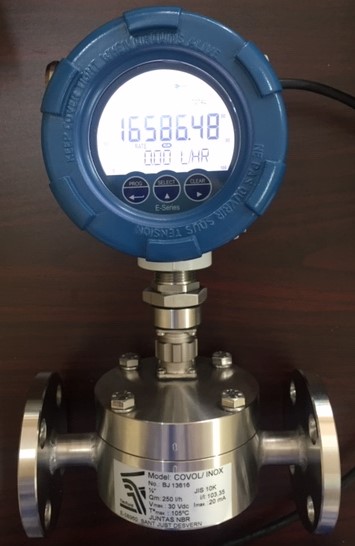

Đồng hồ đo lượng lượng dầu cá

Đồng hồ đo lượng lượng dầu cá:

Suitable for all kind of liquids
Viscosity up to 120000 mPa·s
Excellent performance with changing process conditions
Easily cleaned and sterilized
Available with materials and connections suitable for
hygienic applications
Bidirectional flow measurement and installation in all flow
directions
Special design for high pressure available
Flow rate: 25 l/h ... 60 m3/h
Accuracy: ±0.8% measured value
Repeatability: ±0.3%
Connections:
- EN 1092-1 flange DN10 ... DN100
Other flange standards on request
- Threaded connections BSP or NPT
- Sanitary couplings according to ISO 2852, SMS 1145,
DIN 11851, TRI-CLAMP®
Materials:
- Body: EN 1.4404 (AISI 316L), PVC, PP, PTFE
- Piston: PTFE+graphite, aluminium, bronze, PVDF
- Gaskets: NBR / PTFE / EPDM / Viton® / Silicone
Potential free reed switch output
Optional:
- Flow indication, local or remote
- Volume totalizer, local or remote
- Electronic transmitter with 4-20 mA analog output.
HART protocol available on request
- Volume preselection for batching applications
- Exd version
